Hydraulic Tipping Cylinders

Hydraulic Tipping Cylinders
Hydraulic Tipping Cylinders
Product Code : 04
Product Description

Hydraulic Tipping Cylinders

Since the inception of our company, we have acquired a strong foothold in the particular industry and reckoned as one of the top manufacturers and suppliers of Hydraulic Tipping Cylinders. Our wide range of tipping cylinders is mainly used as under-body tipping cylinder as well as front end tipping cylinders. These cylinders can be availed by our customer in specifications like single action, double action, two stage and multistage tipping cylinders. Our Hydraulic Tipping Cylinders are accredited in the market for its rugged construction and impeccable performance.

Further Details

Tipping cylinder has two construction: single action and Double Action etc. where both the construction of cylinders (Single action & Double action) are pressurized to lift the load, but return (closing) of the cylinder, in single action is by weight of tne body, in double action by oil pressurizing in reverse side. Hence the return is vary fast and also you can get higher Tipping angle in this construction.Tipping cylinder has a range (tonnagewise) from 1 ton payload(auto rickshaw) to 50 tons payload (HCVs). Customers can get these Tipping Cylinders from us at competitive prices.

cylinders, they are Single Action, Double action, two stage and multistage tipping cylinders. These are being used as Under-Body Tipping cylinder as well as Front End Tipping cylinders. Tipping cylinder has two construction: single action and Double Action etc. where both the construction of cylinders (Single action & Double action) are pressurised to lift the load, but return (closing) of the cylinder, in single action is by weight oftne body, in double action by oil pressurising in reverse side. Hence the return is vary fast and also you can get higher Tipping angle in this construction.Tipping cylinder has a range (tonnagewise) from 1 ton payload(autorickshaw) to 50 tons payload (HCVs).Here given a table of all available tipper cylinder, this table shows major diamension, tipping capacity number of stage and construction of cylinder

Dynamic Hydrofab have two types of Tipping Cylinders :

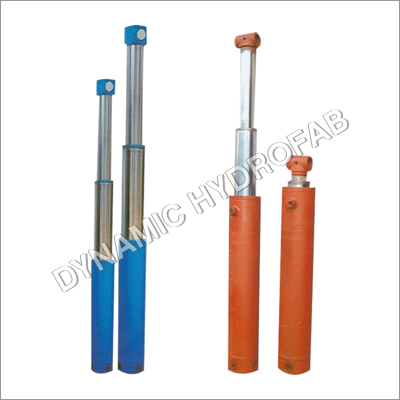

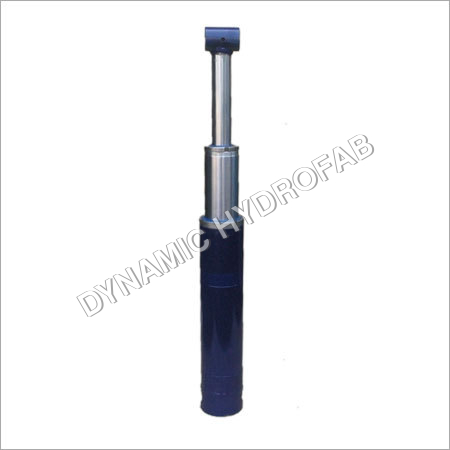

  1) Two-Stage Hydraulic Tipping Cylinder

 2) Multy-Stage Hydraulic Tipping Cylinder

 Here given a table of all available tipper cylinder, this table shows major dimension, tipping capacity number of stage and construction of cylinder:

S.N.

Model

Stages

A



B

C

D (BSP)

E (BSP)

F

G

H

Tonnage

1

SA-100235

2

660

895

115

57

1/2"

NA

40.1

35.1

75

10.9

2

SA-100245

2

785

1145

115

57

1/2"

NA

40.1

35.1

75

10.9

3

SA-900235

2

660

895

105

45

1/2"

NA

40.1

35.1

75

9

4

SA-110235

2

700

895

125

57

1/2"

NA

40.1

35.1

75

13.5

5

SA-110245

2

815

1145

125

57

1/2"

NA

40.1

35.1

75

13.5

6

DA-100235

2

705

895

115

55

1/2"

1/2"

40.1

35.1

75

11

7

DA-100245

2

830

1145

115

55

1/2"

1/2"

40.1

35.1

75

10.9

8

DA-110235

2

735

895

125

55

1/2"

1/2"

40.1

35.1

75

10.9

9

DA-110245

2

860

1145

125

55

1/2"

1/2"

40.1

35.1

75

13.3
