Tipping Cylinders
40000 INR/Unit
Product Details:
- Usage Industrial
- Product Type Tipping Cylinders
- Body Material Stainless Steel
- Type Pipe
- Structure Cylindrical
- Force Hydraulic kilogram-force (kgf)
- Click to View more
X
Tipping Cylinders Price And Quantity
- 40000 INR/Unit
- 1 Unit
Tipping Cylinders Product Specifications
- Industrial
- Pipe
- Cylindrical
- Stainless Steel
- Tipping Cylinders
- Hydraulic kilogram-force (kgf)
Product Description

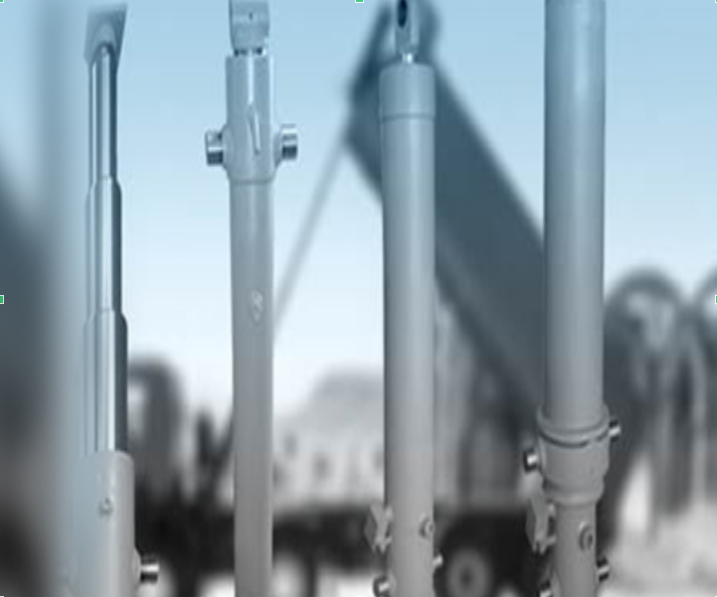

Tipping Cylinders-

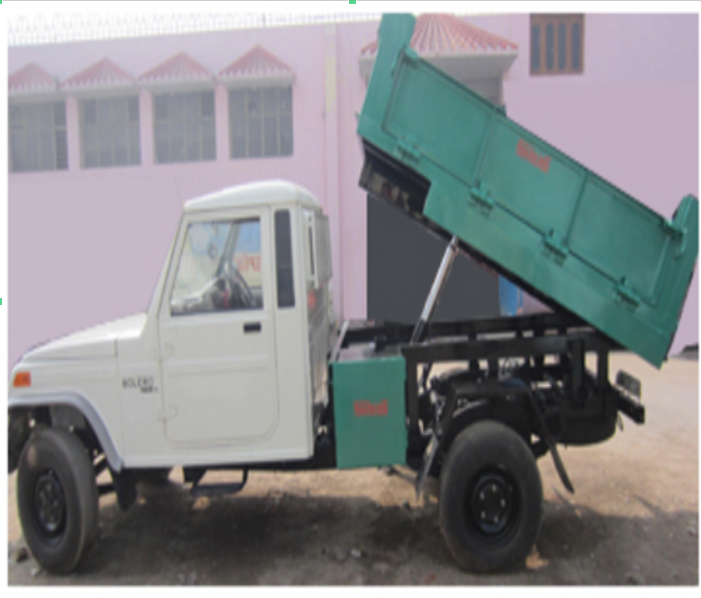

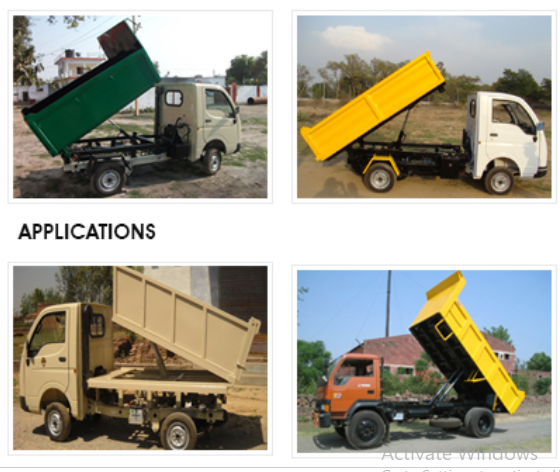

These cylinders can be used as Under-Body Tipping cylinders as well as Front-End tipping cylinders. DHF (Dynamic Hydrofab) is known to manufacture world class cylinders that have an extended life as well as an optimum utility curve that helps the clients work efficiently towards their organizational goals. With many options of customization and modification, they focus on satisfying their customers. The tipping cylinders, which are very economical, are known for the high tipping angle and low costs. These types of cylinders are very famous in the industry.
| S.N. | Model | No. of Stages | Close Centre Length | Stroke | Major Tube Dia. | Last Ram Dia. | Port Size | Pin Dia. (Rear End) | Tonnage@140 kg/cm sq. | |
| A | B | C | D (BSP) | F |
|
|||||
| 1. | TS-902035 | 2 | 660 | 895 | 105 | 45 | 1/2" | 40.1 |
|
8.9 |
| 2 | TS-102035 | 2 | 660 | 895 | 115 | 50 | 1/2" | 40.1 |
|
10.9 |
| 3 | TS-102045 | 2 | 785 | 1145 | 115 | 50 | 1/2" | 40.1 |
|
10.9 |
| 4 | TS-112035 | 2 | 700 | 895 | 125 | 56 | 1/2" | 40.1 |
|
13.3 |
| 5 | TS-112045 | 2 | 785 | 1145 | 125 | 56 | 1/2" | 40.1 |
|
13.3 |
| 6 | TS-122042 | 2 | 850 | 1145 | 140 | 70 | 3/4" | 40 |
|
17.2 |
